Power catamaran layouts prioritize beam-driven social volume, hull-separated sleeping quarters, and technical spaces pushed aft and out of sight. Most designs fall into four families: flybridge-centric layouts built for a second entertaining deck, deck-level open-plan boats that skip the upper helm, owner-in-hull configurations that dedicate one full hull to a master suite, and plan-based builder variants aimed at owner-builders working from stock patterns. The right one depends on how you’ll use the boat, not which layout looks best in a brochure render.
TL;DR:
- The placement of the galley and helm significantly impacts social flow, with open-plan layouts favoring interaction but reducing wind protection offshore.
- Under 40 feet boats typically have two to three cabins and no flybridge, prioritizing accessible technical spaces and close galley placement.
- Larger boats over 60 feet feature generous beam and advanced features like hidden garages and full-length master suites, but come with more complex engineering constraints.
- Layout performance during real charter use depends on how well provisioning, crew access, and circulation are designed for continuous, practical living.
- The boat’s beam size and tank placement are more influential on livability and handling than length or cabin count, so evaluate these factors before choosing a configuration.
Table of Contents
- Primary Layout Zones in Power Catamaran Floor Plans
- Common Power Catamaran Floor Plans by Size Class
- What Trade-Offs Shape Power Catamaran Interior Design
- How Engineering Constraints Bind the Layout
- A Practical Checklist for Evaluating Any GA Plan
- How Layouts Perform in Real Charter Use
- The Layout Question Most Buyers Get Backwards
- Sources
Primary Layout Zones in Power Catamaran Floor Plans
Every power catamaran floor plan is really a negotiation between eight zones: the salon, galley, helm, cabins, heads, foredeck, aft cockpit, and (on larger boats) a flybridge. Where each one lands changes how the boat actually feels to live on.
The helm decision drives everything else. An interior helm station keeps the captain protected and close to guests in the salon, which works well for bareboat charter where the skipper is also a guest. A flybridge helm trades that closeness for elevated sightlines and a second social deck, but it adds weight high in the boat and usually means a second set of stairs guests have to navigate with drinks in hand.
Galley placement follows a similar split:
- Open-plan galley: sits at salon level, facing forward or to the side, letting whoever’s cooking stay part of the conversation. This is the layout SIVO Design describes as prioritizing “flow over formality” on its 100 Sunreef Power project.
- Separated or lower galley: tucked into a hull or a dedicated alcove, which cuts noise and mess from the main gathering space but isolates crew during service.
- Aft cockpit: functions as the hinge between indoor and outdoor living, and its size often dictates whether a boat can host a proper dinner for eight or just a casual sundowner for four.
- Foredeck: increasingly built out with forward-facing lounges or a second dining set, especially on models over 45 feet.
Cabin and head placement in the hulls affects privacy more than almost anything else in the layout.
Common Power Catamaran Floor Plans by Size Class
Boat length doesn’t just add cabins. It changes which zones you can afford to separate at all, and at some point it unlocks features smaller hulls simply can’t carry.
- Under 40 feet. Expect two to three cabins, a single head or head-and-a-half, and no flybridge. Builder GA sheets for boats in this range, like the Leopard 40 Powercat, typically show an aft engine room with accessible technical space and a galley kept close to the salon rather than isolated in a hull. Storage is the first thing sacrificed for cabin count.
- 40 to 60 feet. This band is where the flybridge shows up as a real option rather than a novelty, and where full-beam main saloons start to appear. Three or four cabins become standard, often with an owner’s suite spanning one full hull. Leopard’s power catamaran range shows how modular aft cockpit configurations and alternate three- or four-cabin arrangements let one hull design serve both owner-operators and charter fleets.
- 60 feet and up. Beam becomes generous enough to absorb genuinely bespoke features. Sunreef’s 80 Power Eco carries hidden garages for water toys, foldout platforms, and a master suite that runs the length of a hull, options that simply don’t fit on a narrower boat regardless of how cleverly the plan is drawn.
If you’re building rather than buying, plan packs from sellers like Bruce Roberts publish full-size patterns and GA sheets that tie construction method directly to what’s achievable inside. A boat built in aluminum plate carries different bulkhead and cabin constraints than one laid up in fiberglass, and that shows up in the floor plan long before the hull touches water.
Buyers comparing accommodation needs against boat size get a faster shortlist by matching guest count to size class before falling for a particular saloon layout. Our guide to matching group size with the right BVI powercat breaks that down further.
What Trade-Offs Shape Power Catamaran Interior Design
The phrase “flow over formality” comes up constantly in modern powercat design, and it means something specific: designers are choosing continuous, open sightlines between galley, salon, and cockpit over walled-off, single-purpose rooms. SIVO Design’s work on the 100 Sunreef Power leans hard into this, treating the galley as the social center rather than a service room hidden behind a door.
That openness has a cost. A boat built around one continuous social deck sacrifices some protection from wind and spray compared with a design that keeps the salon enclosed and the cockpit smaller. Offshore, that matters more than it does at anchor.
Layout choices also touch seaworthiness in ways that aren’t obvious from a brochure photo:
- Windage rises with every extra square foot of flybridge and open superstructure, which affects handling in a crosswind.
- Center of gravity climbs when heavy furniture, a flybridge helm station, or a hot tub sits high in the structure.
- Furniture and cabinetry placed near the centerline help keep weight distribution balanced across both hulls rather than loading one side.
Pro Tip: Ask for the boat’s estimated vertical center of gravity, not just its displacement. A flybridge-heavy layout with a high VCG will roll and heel differently than a low-profile design of the same length, even with identical horsepower.
Some builders are now stretching this trade-off further with off-grid and eco-focused designs that reallocate storage and circulation to support longer stretches away from marinas, a shift that changes cabinetry and locker layout as much as it changes the electrical system.
How Engineering Constraints Bind the Layout
No floor plan exists independent of what has to go underneath it. Engine rooms, fuel and water tanks, and service access all compete with living space for the same limited hull volume, and they usually win.
Engines sit aft in the hulls on nearly every production powercat, which is why aft cabins are smaller or absent entirely on many 40 to 50 foot models and why the galley rarely ends up directly above a genset. Tank placement matters just as much: fuel and water distributed unevenly between hulls shifts trim and can eat into cabin volume that looks generous on paper but shrinks once the plumbing runs are boxed in.
A few checks worth running before you commit to a layout:
- Confirm engine room access doesn’t require pulling a bed or galley cabinetry to reach a service point.
- Check that tank placement keeps the boat trimmed level when partially full, not just at capacity.
- Ask how noise and vibration from the engine spaces are isolated from adjacent cabins.
- Verify ventilation reaches enclosed cabins in hulls, not just the salon and cockpit.
Builders who get this right design the technical spaces first and let the interior layout adapt around them, not the other way around.
A Practical Checklist for Evaluating Any GA Plan
Reading a general arrangement drawing is a skill, and most buyers only develop it after being burned once by a boat that looked great on paper and felt cramped in person.
- Walk the passage width mentally. Anything under about two feet between galley counters and salon seating creates a bottleneck the moment more than four people are moving at once.
- Check galley workspace against storage. A galley that looks spacious but has minimal dry storage will frustrate anyone provisioning for a week.
- Trace service access paths. If reaching an engine or generator requires removing furniture, that’s a red flag for both maintenance cost and downtime.
- Ask about noise isolation specs. A builder or broker who can’t answer specifically hasn’t engineered for it.
- Request the actual GA sheet, not a rendering. Renderings sell mood; GA sheets show clearances, tank locations, and cabin dimensions.
Ask a designer or broker directly: where does provisioning happen, and how does it get from dock to galley without crossing guest space? The answer tells you more about a layout than any spec sheet.
How Layouts Perform in Real Charter Use
Layout choices that photograph well don’t always hold up over a week of charter use, and that gap only shows up once guests, crew, and provisioning are all moving through the boat at once.
Crewed operations tend to favor layouts with a separated or semi-separated galley and clear crew access, since a single continuous social deck looks great for one evening but creates real friction during repeated meal service. Bareboat charters, by contrast, often do better with the open-plan, flow-over-formality layouts that keep guests self-sufficient and connected to the cooking and social space at once. Provisioning storage and guest circulation only reveal their weaknesses after several days aboard, not during a walkthrough at the dock. Experience running family-owned fleets in the industry shows which layouts survive that kind of repeated real-world use and which ones just look good in a listing photo.
The Layout Question Most Buyers Get Backwards
Most buyers evaluate a power catamaran floor plan by asking how many people it sleeps. That’s the wrong first question. The right one is how the boat behaves during the two or three hours a day when everyone aboard is awake, hungry, and moving through the same three zones at once, because that’s where a layout either earns its price or falls apart.

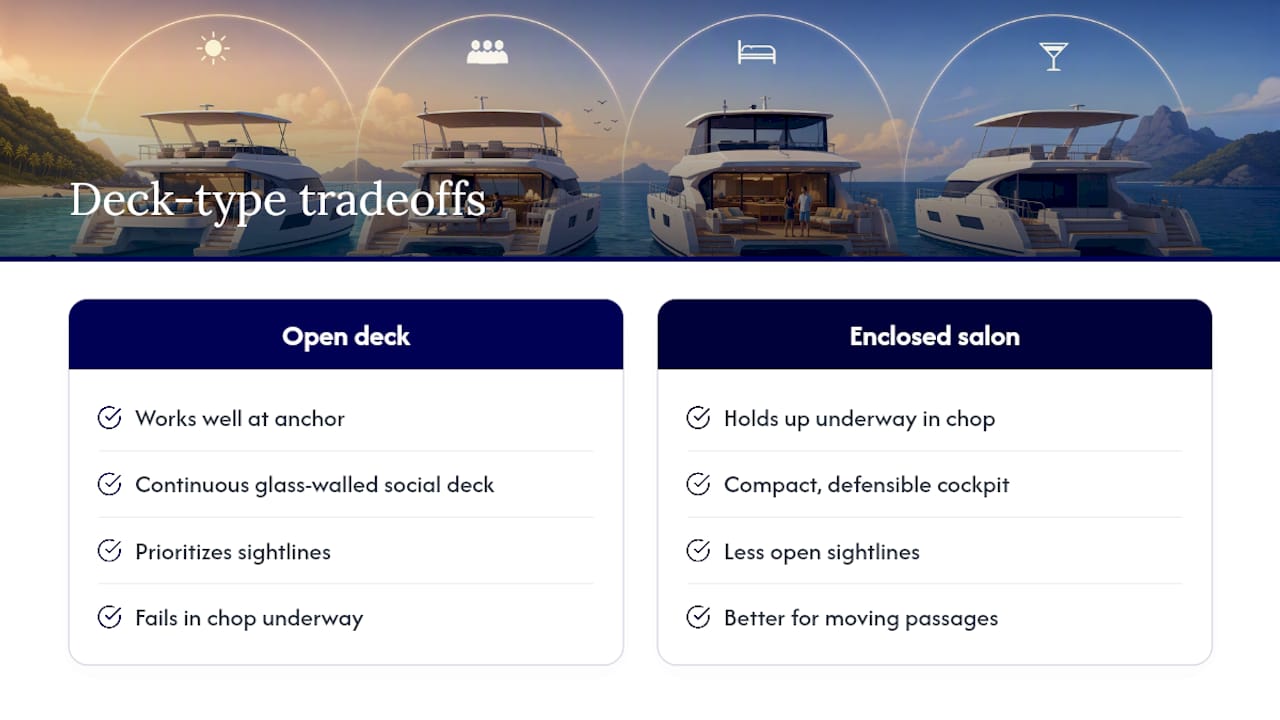

The industry’s obsession with flow over formality has real merit, but it gets oversold. Open, continuous social decks work beautifully at anchor in calm water and fall apart the moment you’re actually underway in a chop, when an enclosed salon and a compact, defensible cockpit matter more than sightlines. Buyers comparing interior configurations should weigh how much time the boat will spend at anchor versus underway before falling for a rendering of one continuous, glass-walled social deck.
What the research and manufacturer plans both make clear is that beam, not length, is the real lever on livability. A well-designed 45 footer with generous beam can out-live a poorly zoned 55 footer. Before comparing cabin counts, ask where the engineers put the tanks and engines first. Everything else in the layout had to fit around that decision, whether the brochure admits it or not.
— alexia
The fastest way to understand which power catamaran layout actually suits your needs is to spend real time aboard one instead of studying another GA sheet. Experience running family-owned fleets of powercats in the Caribbean shapes which layouts are recommended for which kind of trip. If you’re weighing a flybridge-centric design against an open deck-level plan, chartering one of each is a far better test than any drawing. Explore our current motor yacht and power catamaran charter fleet in the BVI and book time aboard the layout you’re seriously considering before you commit to buying one.
